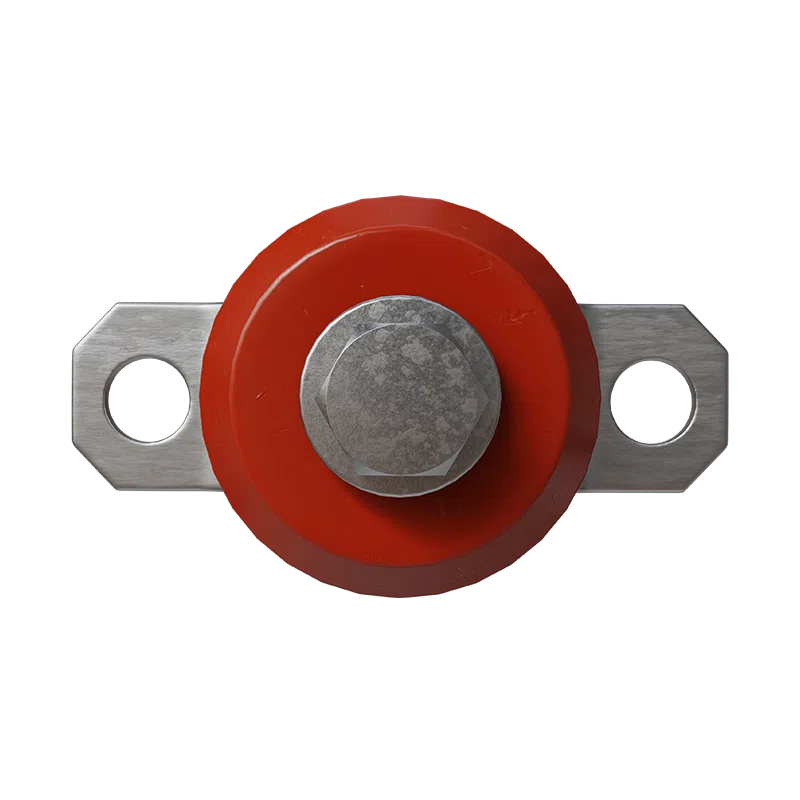

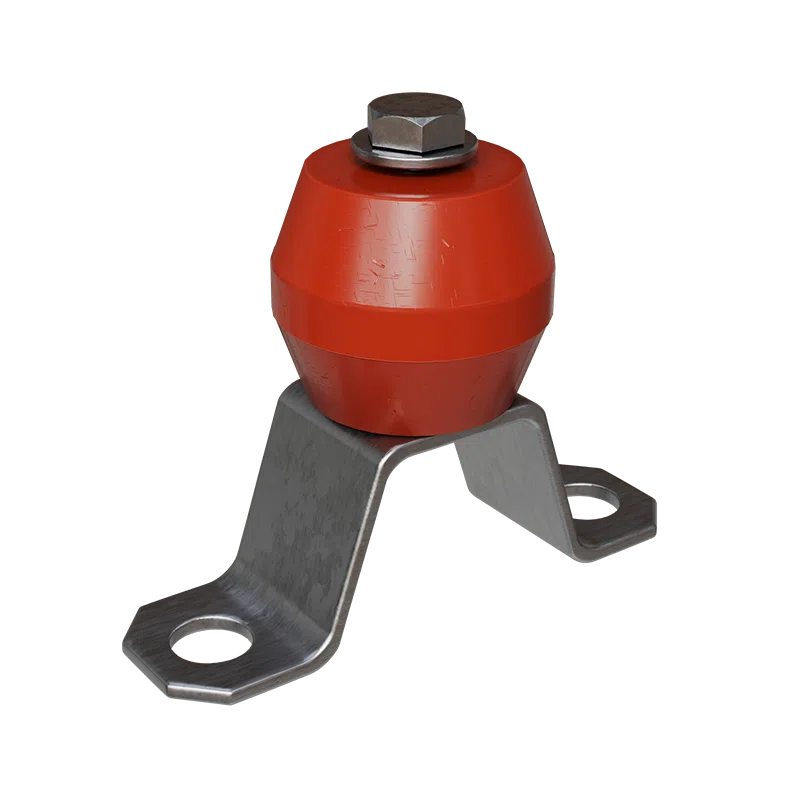

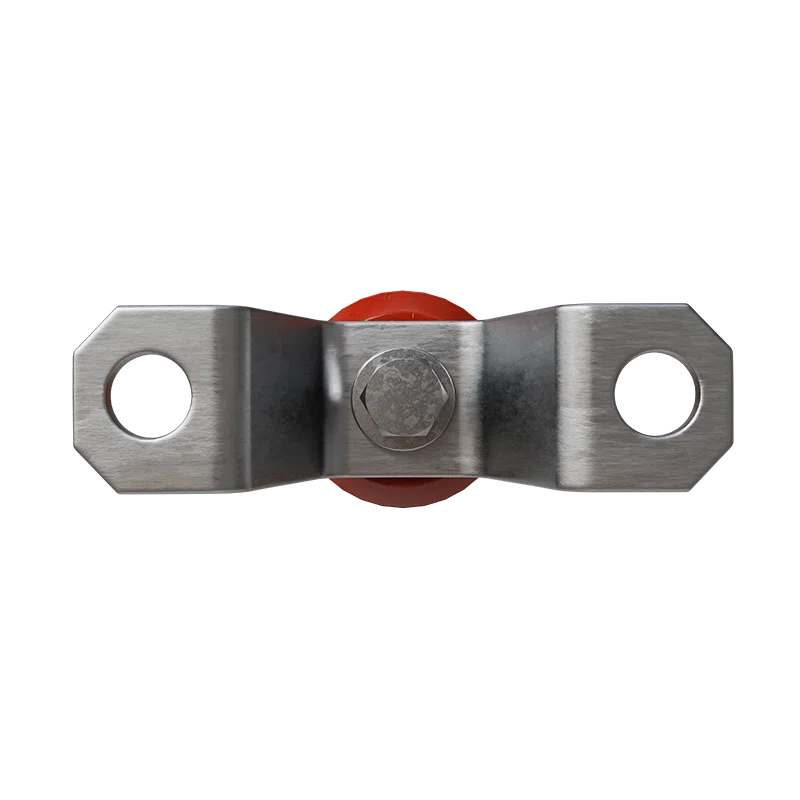

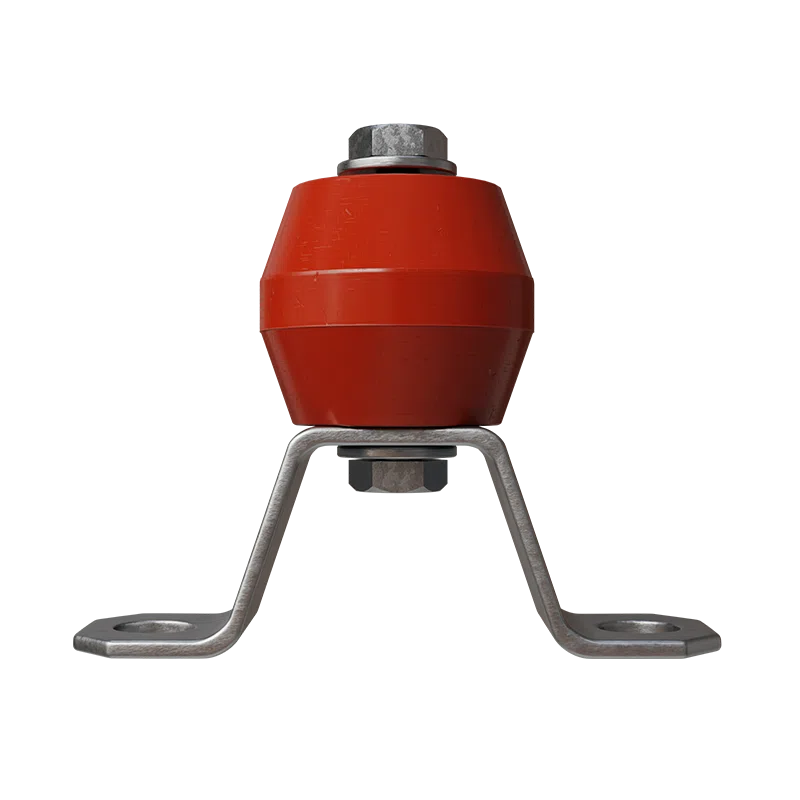

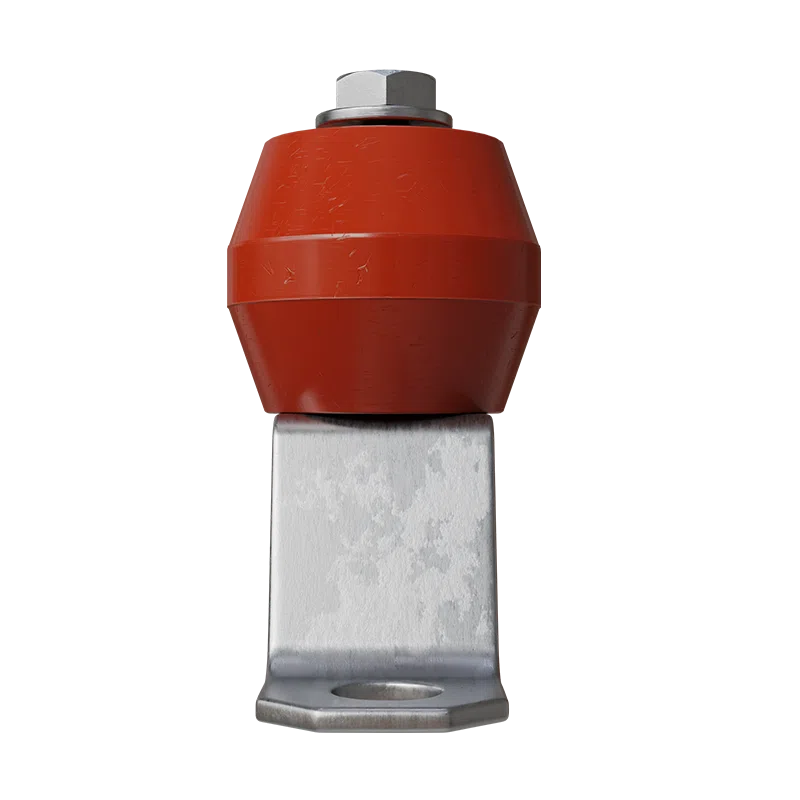

TG-AISLADOR-N11
The TG-ISOLADOR-N11 Insulator is an industrial grade insulating support designed for the safe installation of ground bars in electrical grounding systems. Made of high-resistance phenolic resin, it guarantees superior rigidity and excellent tracking resistance, preventing any unwanted electrical contact with the infrastructure or supporting metal structures.
Main features
- Made of thermostable phenolic resin with high rigidity and resistance to tracking.
- Excellent thermal and mechanical behavior in extreme ranges (-20 °C to +120 °C).
- Robust assembly with screws and galvanized steel trapeze included.
- Greater height (40mm) for superior and safe dielectric separation of the bars.
- Universal compatibility with copper or aluminum bars up to 1/2" thick.
Detailed technical data
| Brand | Total Ground |
|---|---|
| Material | High rigidity phenolic resin |
| Support height | 40 mm |
| Dielectric Strength | 12 kV |
| Mounting thread | 3/8" |
| Screws | 3/8" x 3/4" and 3/8" Flat Washer |
| Support trapeze | Galvanized steel (Height: 40 mm) |
| Operating Temperature | -20°C to +120°C |
| Busbar compatibility | Copper or Aluminum up to 1/2" thick |
| Body color | dark brown |
| Warranty | 1 year against manufacturing defects |
