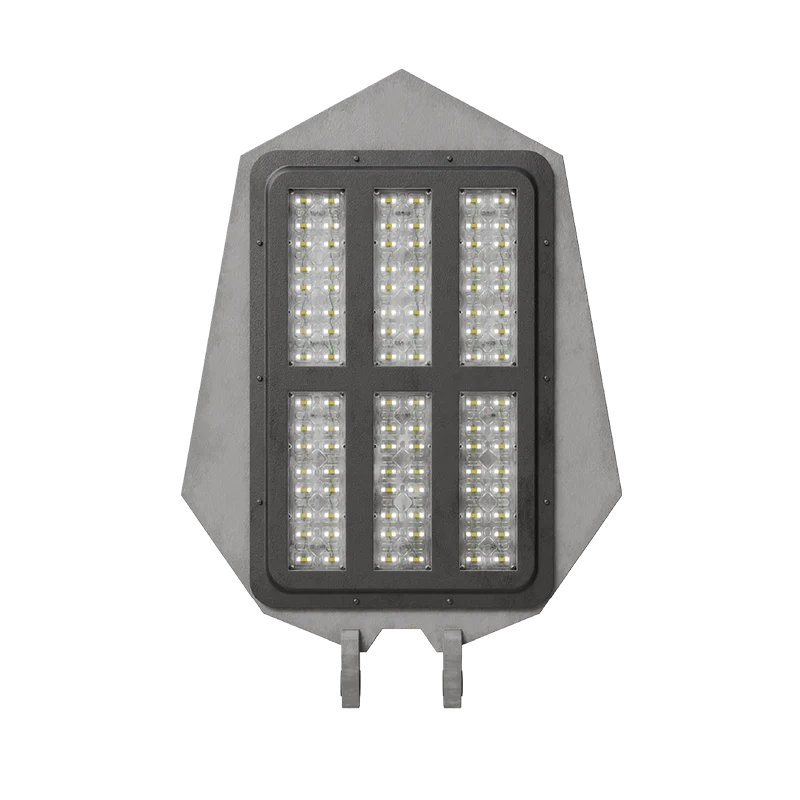

ACRUX LO5 90
The ACRUX LO5 90 luminaire features high-performance, energy-efficient LED technology. Its aerodynamic and durable design provides a long service life. Manufactured from aluminum with an electrostatic coating and IP66 protection. Recommended for outdoor areas, roads, commercial areas, parking lots and parks, with pole mounting.
Main features
- High-performance, energy-efficient LED technology.
- Rated power of 90 W.
- Luminous efficacy of 140 lm/W and luminous flux of 12,516 lm.
- Color temperature of 5,000 K and CRI >70.
- Type T2 distribution.
- Type T2 distribution and input power of 95.5 W.
- Rated service life of 50,000 h.
- Aluminum housing with long-lasting transparent plastic optics.
- Designed for pole mounting.
Detailed technical data
Physical characteristics
| Dimensions | 55 x 38 x 9 cm |
|---|---|
| Heat dissipation material | Aluminum |
| Optical material | Long-lasting transparent plastic |
| Color | Gray |
| Weight | 8.7 kg |
Electrical specifications
| Input voltage | 100~240 Vac |
|---|---|
| Input current | 0.79 A |
| Input power | 95.5 W |
| Power factor | 0.99 |
| Current harmonic distortion | 5% |
Driver specifications
| Output voltage | 36 Vdc |
|---|---|
| Output current | 2.45 A |
| Output power | 88.2 W |
Lighting specifications
| Luminous efficacy | 140 lm/W |
|---|---|
| Luminous flux | 12,400 lm |
| Color temperature | 5,000 K |
| Color rendering index (CRI) | >70 |
| Rated service life | 50,000 h |
| Distribution type | T2 |
Environmental specifications
| Operating temperature | -10 °C to +50 °C |
|---|---|
| Relative humidity | 0%~95% |
