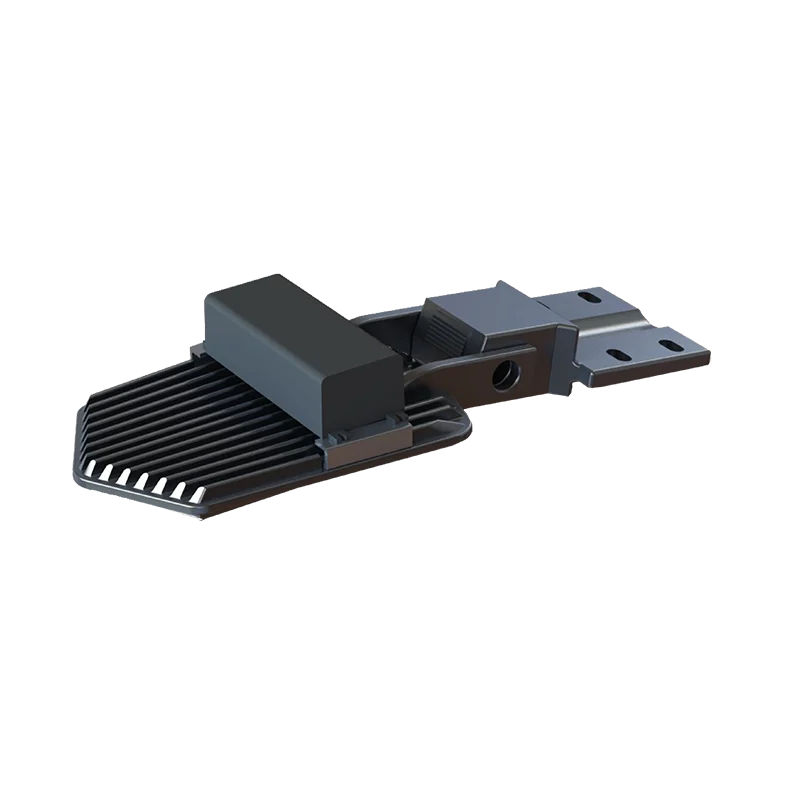

ACRUX LO5 60 ECO
The ACRUX LO5 60 ECO luminaire features high-performance, energy-efficient LED technology. Its aerodynamic, aesthetic and durable front design provides long service life. Manufactured from aluminum with an electrostatic coating and IP66 protection. Recommended for outdoor areas, roads, commercial areas, parking lots and parks, with pole mounting.
Main features
- High-performance, energy-efficient LED technology.
- Luminous efficacy of 140 lm/W and luminous flux of 8,400 lm.
- Color temperature of 5 000 K. and CRI >70.
- IP66 protection.
- Rated service life of 50,000 h.
- Aluminum housing with long-lasting transparent plastic optics.
- Designed for pole mounting.
- Recommended for outdoor areas, roads, commercial areas, parking lots and parks.
Detailed technical data
| Brand | Total Ground |
|---|---|
| Product line | INTELIGHT Luz Inteligente |
| Model | ACRUX LO5 60 ECO |
| Luminous efficacy | 140 lm/W |
| Luminous flux | 8,400 lm. |
| Color temperature | 5 000 K. |
| Color rendering index (CRI) | >70 |
| Rated service life | 50,000 h |
| Input voltage | 100~240 Vac. |
| Input current | 0,73 A. |
| Power factor | 0,97 |
| Current harmonic distortion | 5% |
| Operating temperature | -10°C to +50°C |
| Relative humidity | 0%~95%. |
| Protection rating | IP66 |
| Dimensions | 30 x 18 x 9 cm. |
| Material | Aluminum |
| Optical material | Long-lasting transparent plastic. |
| Color | Gray. |
| Weight | 4 kg. (+3 kg of mounting accessories) |
| Mounting | Pole mounting. |
| Driver output voltage | 36 Vdc. |
| Driver output current | 1,6 A. |
| Driver output power | 58,9 W. |
| Photocell | Standard multivoltage NEMA type, 90 to 227 V. |
| Includes | Luminaire, mounting system and installation manual. |
